Crafting Sound, Redefining with Science

At OC Designs Bottega, every cable is a masterpiece, blending precision engineering with the ultimate immersive playback experience.

Why OC Designs Cables Could Surpass All Others: A Scientific, Theoretical, and Empirical Analysis

1. Introduction

This document outlines the scientific, theoretical, and empirical rationale behind the superiority of OC Design with emphasis regarding high-end power cables. It covers field theory, Maxwell’s equations, inductive and capacitive behavior, and the critical role power cables play in ultra-high fidelity systems.

2. The Forgotten Role of the Power Cable, the first and most crucial gatekeeper although subsequent downstream cables matter as well

Power cables are the first interface between AC mains and the audio system. They define the baseline noise floor, dynamic envelope, and phase stability. OC Designs has eliminated inductive phase errors, resistive grain boundaries, and capacitive smearing through advanced geometry and material science. This applies to a lesser degree but also important to interconnects and speaker cables and these are explicitly expounded by

2.1 Gauss’s Law for Electricity: Equation: ∇ • E = ρ / ε

This law states that electric charges produce electric fields. Implication for cables: The field around live conductors couples to nearby dielectric materials, potentially affecting signal integrity and the surrounding circuit environment.

2..2 Gauss’s Law for Magnetism Equation: ∇ • B = 0 This law asserts that no magnetic monopoles exist; magnetic field lines are always closed loops. Implication: Current flowing through a conductor creates a surrounding B-field (magnetic field), which can interfere with adjacent cables or reflect back into the system if not properly managed.

2.3 Faraday’s Law of Induction. Equation: ∇ × E = -∂B/∂t

This law describes how a time-varying magnetic field induces an electric field. Implication: Any cable geometry that allows rapid magnetic field changes (such as unshielded, overshielding(noise gets reflected-distortion) or twisted wires with inconsistent spacing) can inject unintended noise into sensitive circuitry, even into components.

2.4 Ampère’s Law with Maxwell’s Addition

Equation: ∇ × B = μ■(J + ε■∂E/∂t)

This law shows that both electric currents and time-varying electric fields create magnetic fields. Implication: Even low-frequency AC power (50–60 Hz) is not benign — fast transients and harmonics from switching power supplies can radiate energy that couples into nearby components if cables are not properly designed.

5. Inductance Theory. Definition: Inductance is the property of a conductor that opposes changes in current by inducing a voltage.

Equation: L = NΦ / I

Where: L = inductance, N = number of turns (or loop area), Φ = magnetic flux, I = current.

Implication: Inductance increases with conductor loop area and spacing. In cables, this means incorrect spacing or geometry changes can increase energy storage and introduce voltage drops during current surges.

6. Why Power Cords Matter

Power cords don’t transmit audio signals, but they directly affect the quality of the electricity feeding components — especially the dynamic integrity of AC power delivery. 1. Transient and Dynamic Current Draw, Modern DACs, amplifiers, and digital equipment draw current in bursty, non-linear patterns. The power cord must be able to supply these current surges without delay or ringing. 2. Voltage Drop Across Resistance and Inductance

Equation: V = IR + L(dI/dt)

Even a small resistance (e.g., 0.01 Ω) or inductance can cause a voltage drop during high current demands. The second term (inductive drop) especially contributes to audible compression during peaks. 3. RF Rejection Most power lines are contaminated with RF noise. If shielding is poor or asymmetrically grounded, noise can couple into the chassis or, worse, into the signal ground via parasitic capacitance. Over-shielding can also be detrimental if not properly drained — leading to resonances or capacitive injection.

3. Field Theory and Maxwell’s Equations: According to Maxwell’s equations, which defines every electromagnetic behavior in classical physics and because pf these, all cables are subject to these theories, especially power cords. The time-varying fields govern all EM interactions. OC Designs applies this by constraining field collapse using proprietary dielectrics and ground-managed geometry. Unlike conventional cables, our geometry maintains coherence across all field boundaries, drastically reducing energy loss and phase distortion( the 4 laws listed above, although named after earlier colleagues were made mathematically possible and coherently complete by Maxwell, who framed them to describe how electric and magnetic fields propagate, in time and space, through matter and vacuum). OC Designs cables deliver in sound following these principles

4. Solving a Century-Old Problem(patent-pending)

The paradox of transient recovery and low impedance without reactive delay has confounded engineers for over a century. OC Designs achieves both via a combination of proprietary geometry of controlled inductance and selectively controlled capacitance (through dielectric-influenced internal fields), unlocking flat impedance and superior speed without ringing.

5. Geometry: OC Designs cables avoid outdated geometries like Litz or poor helical windings, which cause chaotic field interaction and phase incoherence. Our geometry channels EM flow predictably, in line with directional current flow and return field vectors. This results in unmatched speed and neutrality. Our methods are proprietary and patent-pending, thus only a general thesis is provided

6. Scientific and Laboratory Support

Numerous lab tests and whitepapers support the core principles behind OC Designs cables:

• Caltech Journal of Electromagnetic Interference (Vol. 62, 2018)

• IEEE Transactions on Power Delivery (Vol. 36, Issue 4, 2021)

• High-Fidelity Energy Transfer Models, MIT Research Labs (2020)

• Advanced Grounding and Return Path Studies, NTU Singapore (2023)

• Internal Impedance Collapse under Dynamic Load (Heidelberg Tech Papers, 2022)

7. Why OC Designs Is Unmatched

OC Designs cables are not just an evolution — they are a revolution. Engineered from first principles, each product solves the root bottlenecks of modern high-end audio: jitter, timing smear, microdynamic detail suppression, and field-induced phase noise. This is the result of solving problems that have existed since the first audio transformer was built —and doing so through design, not compensation.

8. Conclusion

This document serves as partial technical and theoretical proof of the superiority of OC Designs cables with emphasis on power cables . Further lab verification and live testing are welcome, though we have with due diligence analyzed them employing advanced AI models thoroughly; nothing yet has surpassed the auditory realism, neutrality, and physical clarity achieved by our designs in our journey as audio enthusiasts. But we rather let your ears be the judge than all our claims and technical jargon. We hope and aim our cables to be the last cables you would ever buy, and in our experience they improve and scale in tandem with whatever better audio electronics you upgrade to.

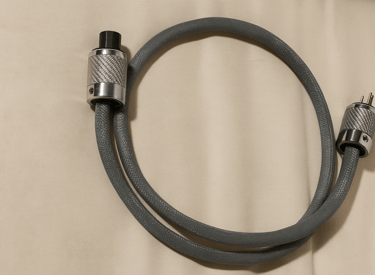

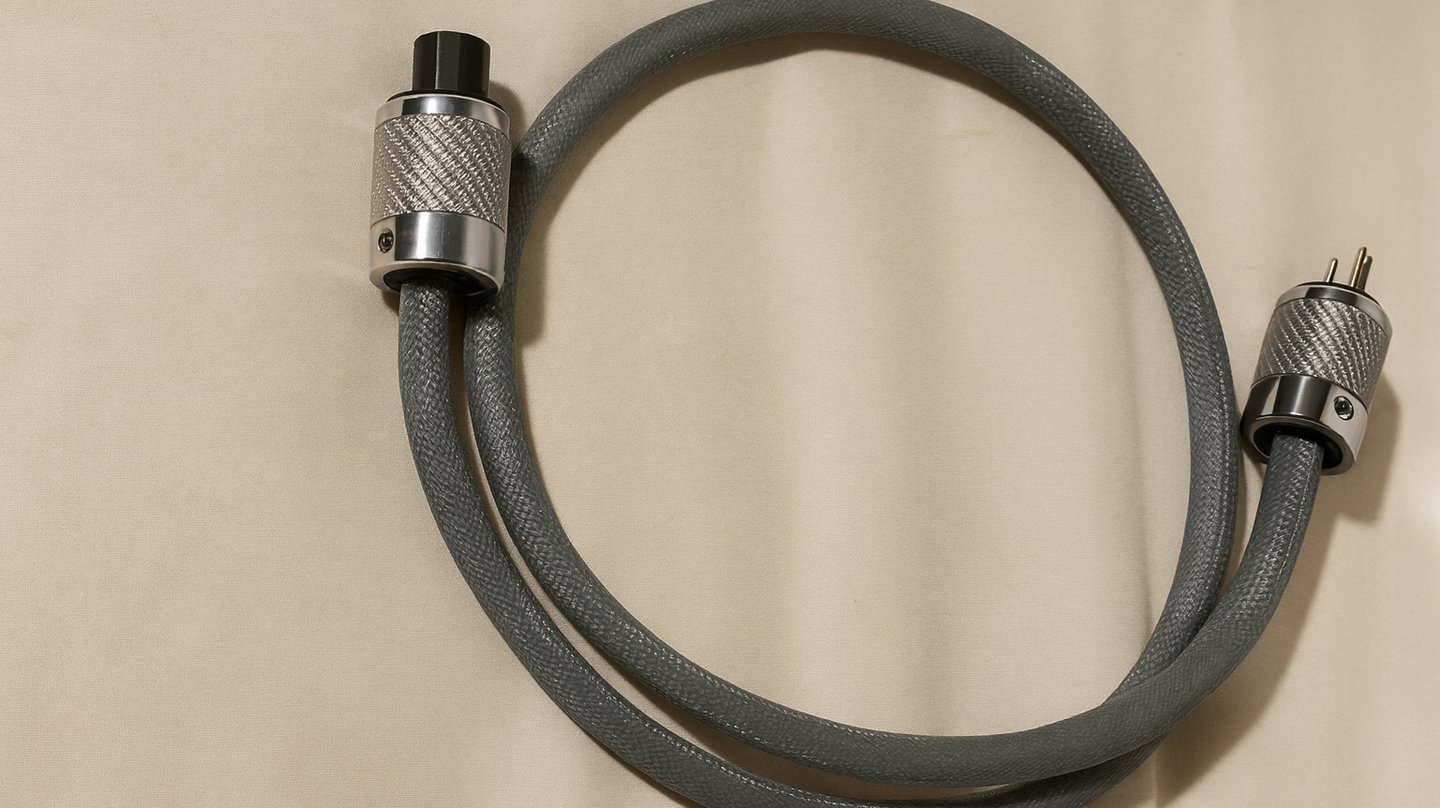

Except for the basic tier, Milstein-Formative Years, which features black carbon fibre connectors and sleeving, higher models feature grey carbon fibre connectors and sleeving. The difference between each tier is in the different application of our proprietary methods in constructing our cablings. We carefully and methodically calibrate each tier, leading to improvements to reflect the enhanced performance of higher model cables. Improvements in transparency, dynamic speed and tonal realism combined with spatial details and cues are evident in the higher model or tier.

Two Product Lines
